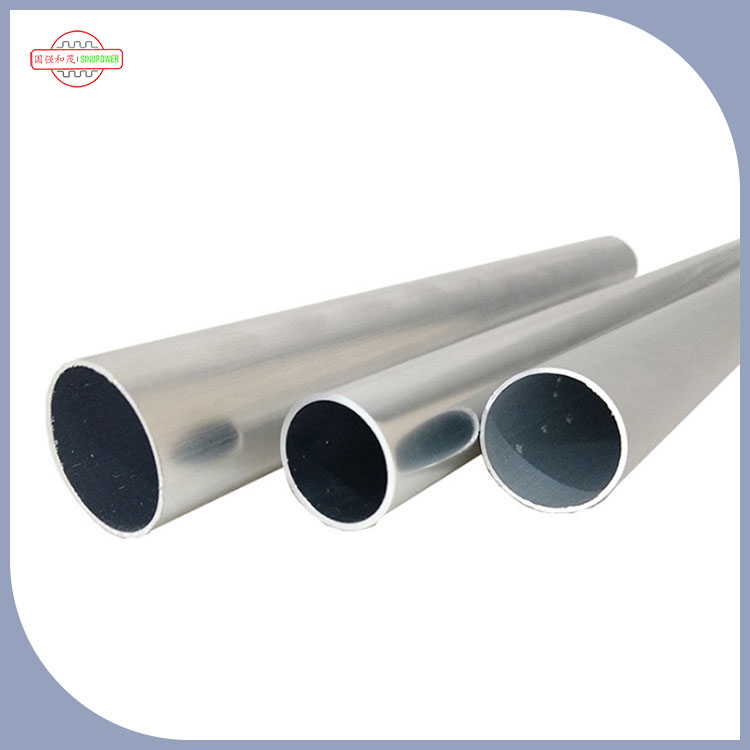

Round condenser tubes are essential components in heat exchangers, particularly in air conditioning, refrigeration, and power generation systems. Their primary function is to transfer heat efficiently between two mediums. The manufacturing process of these tubes involves several techniques, each designed to ensure optimal performance and durability. In this blog, we’ll explore the various manufacturing techniques used for round condenser tubes.
The materials used in the production of round condenser tubes are critical to their performance. Typically, these tubes are made from metals that possess excellent thermal conductivity and resistance to corrosion. Common materials include copper, brass, and various grades of stainless steel. Copper is favored for its superior heat transfer properties, while stainless steel is used for its strength and resistance to environmental factors like moisture and chemicals. The choice of material depends on the specific requirements of the condenser and the operating environment.
The initial step in manufacturing round condenser tubes is the shaping process. The most common method used to form these tubes is extrusion. During extrusion, a billet of metal is heated to a pliable state and then forced through a mold or die to create the tube's desired shape and size. This technique allows for precise control over the tube's dimensions, ensuring a consistent, smooth surface that is critical for heat transfer efficiency. Some variations of the process include rotary extrusion, which provides better control over thickness and mechanical properties.
Welding is a crucial part of the manufacturing process for certain types of round condenser tubes, especially when they are made from materials that need to be joined together, such as multi-layered tubes or those with internal fins for improved heat transfer. In some cases, the tubes are fabricated from flat sheets that are welded into cylindrical shapes. The welding process ensures that the tube is sealed properly, eliminating any risk of leaks or structural weaknesses. The most commonly used welding techniques for condenser tubes are TIG (Tungsten Inert Gas) welding and MIG (Metal Inert Gas) welding, both of which provide clean, strong, and precise welds.
Strengthening techniques are essential to enhance the durability and longevity of round condenser tubes. After the tubes are formed and welded, they often undergo heat treatment processes, such as annealing, to relieve internal stresses and improve the material’s hardness and resistance to corrosion. For instance, copper tubes may be annealed to increase flexibility, while stainless steel tubes are heat-treated to improve their strength and resistance to cracking. Some tubes may also undergo processes like cold working, which increases their tensile strength and makes them more resistant to external pressure.
Surface finishing is an essential step in the manufacturing of round condenser tubes, as it ensures smoothness and improves heat transfer. The finishing process may include various methods, such as polishing, drawing, or coating. Polishing is used to smooth the exterior surface, reducing friction and enhancing heat transfer efficiency. Drawing is a cold working process where the tubes are pulled through a die to reduce their diameter and improve their surface finish. Additionally, some tubes may be coated with anti-corrosion materials like zinc or aluminum to further protect them from environmental factors.
Quality control is critical to ensure that round condenser tubes meet the required standards for strength, durability, and thermal performance. The tubes are subject to rigorous testing, including dimensional checks, pressure testing, and thermal conductivity measurements. Pressure testing ensures that the tubes can withstand the pressures they will face in the condenser system without failing. Thermal conductivity tests confirm that the tube’s material and surface finish allow for efficient heat transfer. Finally, visual inspections and non-destructive tests like ultrasonic or eddy current testing are performed to detect any imperfections or potential weaknesses in the tube structure.
Once the manufacturing process is complete, round condenser tubes are carefully packaged for delivery. Tubes are often coiled or bundled, depending on their length and the customer’s specifications. Packaging is designed to protect the tubes from damage during transportation while ensuring they remain in optimal condition for installation. Some manufacturers also offer customized packaging solutions, such as protective coatings or wrapping, to further safeguard the tubes.
In conclusion, the manufacturing of round condenser tubes involves a series of precise techniques, from material selection and extrusion to welding, strengthening, and surface finishing. These processes ensure that the tubes can meet the demanding requirements of heat exchangers, providing efficient and reliable performance in various industrial applications.
